▋概述Description

T138拉斷閥是應用于高壓氫氣加注,為了防止加氫軟管受到非正常外力作用，導致軟管或其他零部件受損而設計的安全防護產品。配套使用加氫槍T635型。

The T138 high-pressure hydrogen breakaway coupling is a safety protection product designed to prevent the hydrogen refueling hose or other parts from being damaged by abnormal external forces. Equipped with hydrogen refueling T635 type.

拉斷閥與加氫軟管連接，當拉斷閥受到的軸向力達到預設值后，拉斷閥的拉斷軸會與拉斷閥主體分離，兩端自動密封，防止氫氣外泄，保證加氫站的安全。

The breakaway coupling is connected with the hydrogen refueling hose. When the axial force received by the hose reaches the preset value of the breakaway coupling, the breakaway shaft of the breakaway coupling will be separated from the main body of the breakaway coupling. and the two ends will be automatically sealed to prevent hydrogen leakage and ensure the safety of the hydrogen refueling station.

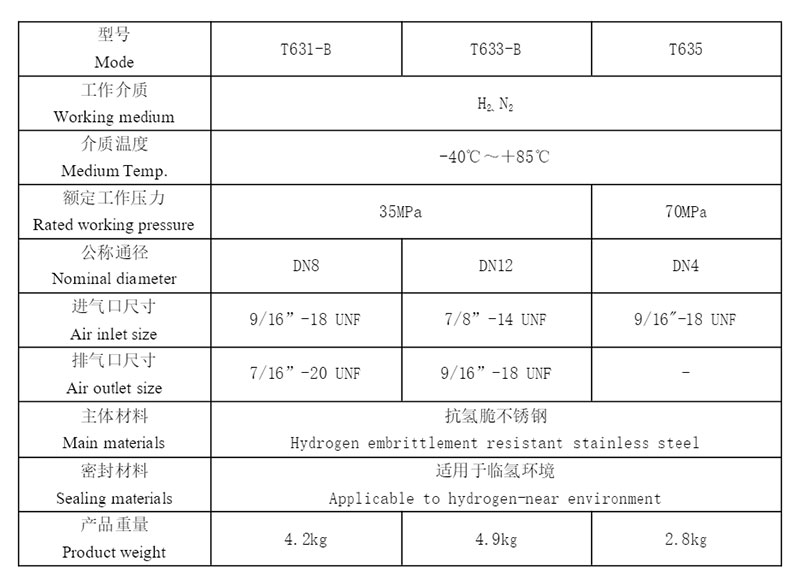

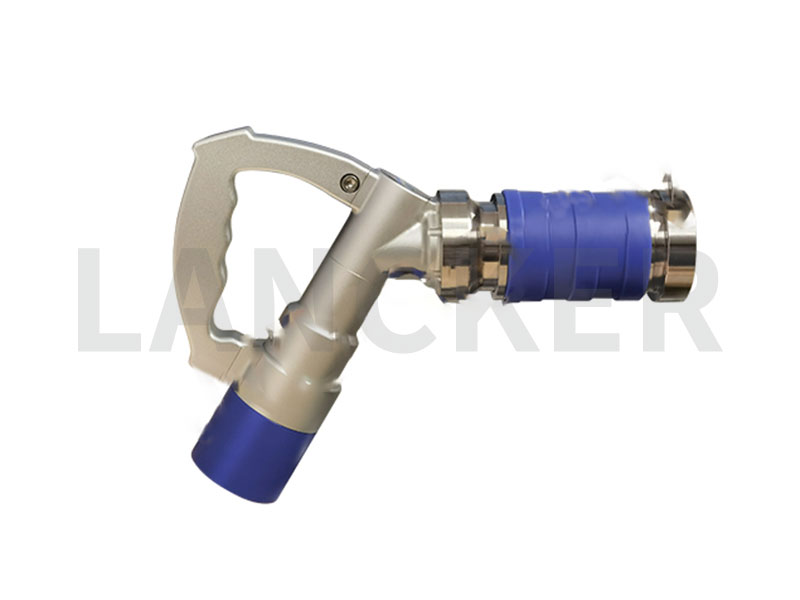

T635加氫槍

T635系列加氫槍是針對車輛加注高壓氫氣而研發(fā)設計。

①加氫槍采用專利密封結構；

②IIC類防爆等級；

③采用高強度抗氫脆不銹鋼。
